Umbhobho spool
Ithetha ukuthini iPipe Spool?

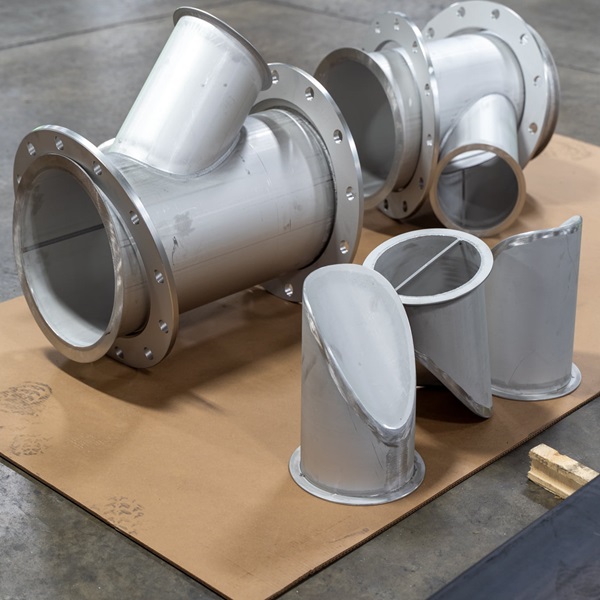

Iispools zemibhobho ngamacandelo enziwe kwangaphambili enkqubo yokubhobhoza. Igama elithi "i-pipe spools" lisetyenziselwa ukuchaza imibhobho, iiflange, kunye nezixhobo eziveliswa ngaphambi kokuba zifakwe kwinkqubo yokubhobhoza. Iispools zemibhobho zenziwe kwangaphambili ukuququzelela ukudibanisa usebenzisa i-hoists, iigeji, kunye nezinye izixhobo zokujoyina iindawo. Iibhobho zombhobho zidibanisa imibhobho emide kunye neeflange ukusuka ekupheleni kwemibhobho emide ukwenzela ukuba ibotshwe kunye nomnye kunye neeflange ezihambelanayo. Olu nxibelelwano lufakwe ngaphakathi kweendonga zekhonkrithi ngaphambi kokugalelwa kwekhonkrithi. Le nkqubo kufuneka ilungelelaniswe ngokufanelekileyo phambi kokuthululwa kwekhonkrithi, njengoko kufuneka ikwazi ukumelana nobunzima kunye namandla esakhiwo.
I-Pre-Fabrication yePipe Spools
Ukulungiswa komqulu kunye nenkqubo ye-welding ifaneleka umbhobho oyintloko ngomatshini wokuqengqeleka kunye ne-welder ayifuni ukutshintsha imeko yakhe, kwaye kwakhona indawo yokufakela kunye ne-welding yenzeke xa isebe elingaphezu kwelinye lombhobho omde linqoba umda wokucoca. Ukudala inkqubo yokubhobhoza esebenzayo kunye nokugcina ixesha, i-pipe spool pre-fabrication isetyenziswa. Ngenxa yokuba ukuba inkqubo ayizange ivelise i-preliminary, ukuwelda kwenkqubo kuya kuthatha ixesha elide kwaye i-welder kufuneka ihambe phezu kombhobho oyintloko ukuphumeza ukufakela okanye ukuwelda.
Kutheni ii-Pipe Spools zenziwe kwangaphambili?
I-pipe spools yenziwe kwangaphambili ukunciphisa iindleko zokufakela intsimi kunye nokubonelela ngekhwalithi ephezulu kwiimveliso. Ziye zijikezwe ngokubanzi ukufumana uqhagamshelo kwezinye iispools. Ukwenziwa kwe-spool ngokuqhelekileyo kwenziwa ziinkampani ezikhethekileyo ezineziseko ezingundoqo ezifunekayo. Aba baqulunqi beengcali bavelisa inkqubo phantsi kweseti echaziweyo yomgangatho kunye nokuchaneka ukufumana ukulungelelaniswa okufanelekileyo kwindawo kunye nokugcina iimpawu zobugcisa eziyimfuneko ezichazwe ngumxhasi.
Iinkqubo zemibhobho esetyenziswa kakhulu ngokubanzi:
Imibhobho yentsimbi
Ukubonelela ngamanzi kunye neegesi ezinokutsha, iipayipi zensimbi ziyimibhobho eluncedo kakhulu. Zisetyenziselwa kumakhaya amaninzi kunye namashishini ukudlulisa igesi yendalo okanye i-propane fuel. Bakwasetyenziselwa iinkqubo zokutshiza umlilo ngenxa yokumelana nobushushu obuphezulu. Ukuqina kwentsimbi yenye yezona zinto zilungileyo kwiinkqubo zemibhobho. Yomelele kwaye iyakwazi ukumelana noxinzelelo, amaqondo obushushu, ukothuka okukhulu, kunye nokungcangcazela. Ikwanayo nokuguquguquka okukodwa okubonelela ukongezwa okulula.
Imibhobho yobhedu
Imibhobho yobhedu isetyenziswa kakhulu ekuthuthweni kwamanzi ashushu nabandayo. Kukho ubukhulu becala iintlobo ezimbini zemibhobho yobhedu, ubhedu oluthambileyo noluqinileyo. Imibhobho yobhedu edityanisiweyo kusetyenziswa uqhagamshelo lweflare, uqhagamshelo loxinzelelo, okanye isolder. Iyabiza kodwa inika umgangatho ophezulu wokuxhathisa umhlwa.
Imibhobho yeAluminiyam
Isetyenziswe ngenxa yexabiso eliphantsi, ukuchasana nokubola kunye ne-ductility yayo. Zinqweneleka ngakumbi kunentsimbi yokuhambisa izinyibilikisi ezinokutsha ngenxa yokwakheka kwentlantsi. Imibhobho ye-Aluminiyam inokudityaniswa ngokuvutha kwezixhobo zoxinzelelo.
Imibhobho yeglasi
Imibhobho yeglasi epholileyo isetyenziselwa usetyenziso olukhethekileyo, olufana nolwelo oludlekayo, inkunkuma yonyango okanye yaselabhoratri, okanye ukwenziwa kwamayeza. Uqhagamshelo lwenziwa ngokubanzi kusetyenziswa i-gasket ekhethekileyo okanye i-O-ring fittings.
Izinto eziluncedo zokwenziwa kwangaphambili (Ukunciphisa iNdleko kuLwakhiwo lwangaphambili, uHlolo, kunye noVavanyo)
Kwiindawo ezilawulwayo, umgangatho womsebenzi kulula ukulawula nokugcina.
Ukunyamezela okuchaziweyo kunqanda ukusebenza kwakhona kwindawo ngenxa yokuchaneka okuphezulu.
Ukwenziwa kuxhomekeke kwimozulu, ngoko ke kunciphisa ukulibaziseka kwemveliso.
Inkqubo yokwenziwa kwangaphambili yeyona nto ilungileyo kuba ibonelela ngabasebenzi abancinci bokwenziwa kweespools kwisiza.
Ukuveliswa kwemveliso eninzi kubangela iindleko eziphantsi zokuvelisa xa kuthelekiswa nokuveliswa kwendawo.
Ukwenziwa okuncinci kunye nexesha lokuhlanganisa elifunekayo kwii-spools ezenziwe ngaphambili, ngale ndlela, ixesha elongezelelweyo kunye nokuchithwa kweendleko kuphetshwa.
I-spools eyenziwe kwangaphambili ifuna utyalo-mali oluncinci kwimveliso kunye nezixhobo zokuvavanya ngabasebenzisi. Ukwenza ngcono kunye nokusebenza kakuhle, iRadiography, i-PMI, i-MPI, iimvavanyo ze-Ultrasonic, iimvavanyo ze-Hydro, njl.
Ukufumana amathuba amancinci okusebenza kwakhona kwisayithi, ulawulo olungcono lweeparamitha ze-welding kufuneka lwenziwe kwiindawo ezilawulwayo.
Ubukho bamandla ayimfuneko.
Ukulibaziseka kwexesha ngokungeyomfuneko kuyaphetshwa.
Eyona Ntsilelo iPhambili yokwenza iiSpools zemibhobho
Ukwenza iispools zemibhobho kuneenzuzo ezimangalisayo kodwa eyona nto ingeloncedo kukungalungeli kwisiza. Le ngxaki ibangela iziphumo ezibi. Impazamo enye encinci kwi-pre-production of pipe spools ibangela inkqubo engafanelekanga kwindawo yokusebenza kwaye idala ingxaki enkulu. Xa le ngxaki isenzeka, uvavanyo loxinzelelo kunye ne-x-reyi ye-welds kufuneka ihlolwe kwakhona kwaye ukuwelda kwakhona kufuneka kufuneke.
Njengomthengisi wombhobho oqeqeshiweyo, i-Hnssd.com inokubonelela ngemibhobho yentsimbi, izixhobo zombhobho, kunye neeflange kwiinkalo ezahlukeneyo, imigangatho kunye nezinto eziphathekayo. Ukuba ufuna ulwazi oluthe vetshe malunga neemveliso zethu, siyakucela ngobubele ukuba uqhagamshelane nathi:sales@hnssd.com
Ubungakanani bombhobho spool
| Indlela yokuvelisa | Izinto eziphathekayo | Uluhlu lobungakanani kunye nemilinganiselo ye-spool yombhobho | IShedyuli / Ukutyeba kweendonga | |
|---|---|---|---|---|
| Ubuncinci ubukhulu (mm) Ishedyuli 10S | Ubukhulu obukhulu (mm) Ishedyuli XXS | |||
| Yakhiwe ngaphandle komthungo | Intsimbi yekhabhoni | 0.5 - 30 Intshi | 3 mm | 85 mm |
| Yakhiwe ngaphandle komthungo | Intsimbi ye-alloy | 0.5 - 30 Intshi | 3 mm | 85 mm |
| Yakhiwe ngaphandle komthungo | Yenziwe ngentsimbi eshayinayo | 0.5 - 24 Intshi | 3 mm | 70 mm |
| Welded Fabricated | Intsimbi yekhabhoni | 0.5 - 96 Intshi | 8 mm | 85 mm |
| Welded Fabricated | Intsimbi ye-alloy | 0.5 - 48 Intshi | 8 mm | 85 mm |
| Welded Fabricated | Yenziwe ngentsimbi eshayinayo | 0.5 - 74 Intshi | 6 mm | 70 mm |
Ukucaciswa kwe-spool yombhobho
| Imibhobho spool imilinganiselo | Umbhobho ophothiweyo umgangatho womgangatho | Isiqinisekiso |
|---|---|---|
|
|
|
| Iindlela ze-welding eziqhelekileyo ezilandelwa ngabavelisi be-spool yombhobho | Umgangatho wokuwelda | Uvavanyo lwe-welder |
|
|
|
| Ukuqina | Iinkonzo zokwenziwa kweSpool | Ukuchongwa kwe-pipe spool |
|
Qhagamshelana nabavelisi be-spool abadweliswe ngasentla kwiimfuno zakho ezithile |
|
| Umbhobho spool hs ikhowudi | Amaxwebhu | Uvavanyo |
|
|
|
| Ikhowudi & umgangatho | Isiphelo-Prep | Iinkcukacha zokumakisha |
|
|
Inkqubo yobulumko yokusika kunye nokumakishwa kwezinto
|
| Ubushushu-unyango | Iingcebiso zokuGcina kunye nokuPakisha | Amashishini |
|
|
|
Umbhobho spool ubude
| Ubuncinane bobude be-spool yombhobho | 70mm -100mm ngokwemfuneko |
| Ubuninzi bobude bombhobho spool | 2.5mx 2.5mx 12m |
| Ubude bombhobho osemgangathweni we-spool | 12m |
Ukufakwa kombhobho ohambelanayo kunye neeflange zokwenza umbhobho we-spool
| Izinto eziphathekayo | Umbhobho | Ukufakwa kombhobho ohambelanayo | Iiflange ezihambelanayo |
|---|---|---|---|
| Ikhabhoni yentsimbi yombhobho spool |
|
|
|
| I-spool yensimbi engenasici |
|
|
|
| Umbhobho we-Titanium spool |
|
|
|
|
|
|
|
| Duplex / Super duplex/ SMO 254 umbhobho spool |
|
|
|
| I-nickel yobhedu |
|
|
|
Inkqubo yokwenziwa kombhobho spool
| Indlela yoku-1 | Ukuwelda umqulu/ Ukufakwa kwamatye kunye nokuwelda | |
| Indlela yesi-2 | Isikhundla sokuwelda/ Indawo esisigxina yokulinganisa kunye nokuwelda |
Izinto ezilumkileyo ezifanelekileyo iindlela zokuwelda
| Ngaba i-weld | Ayikwazi ukuwelda | |
|---|---|---|
| FCAW | Iintsimbi zekhabhoni, intsimbi ekhandiweyo, ialloys esekwe nickel | iAuminiyam |
| Intonga yokuwelda | Iintsimbi zekhabhoni, iialloyi ezisekelwe kwinickel, iChrome, ss, nkqu neAluminiyam kodwa ingeyiyo eyona ilungileyo Okona kulungileyo ukuwelda iintsimbi ezityebileyo | Iintsimbi zeshiti elincinci |
| Tig welding | Eyona nto ingcono kwintsimbi kunye ne-aluminiyam ngokuchaneka kunye neeweld ezincinci |
Iinkqubo zesatifikethi se-Pipe spool welding
- Ukuwelda kwe-TIG-GTAW (iGas Tungsten Arc Welding)
- Intonga yokuwelda-i-SMAW (iShielded Metal Arc Welding)
- Ukuwelda kwe-MIG-GMAW (I-Gas Metal Arc Welding)
- FCAW – Wire Wheel welding/Flux Core Arc Welding
Umbhobho spool welding izikhundla zesatifikethi
| Umbhobho Welding | Isikhundla seSiqinisekiso |
|---|---|
| 1G Welding | indawo ethe tyaba |
| 2G Welding | indawo ethe nkqo |
| 5G Welding | indawo ethe tyaba |
| 6G Welding | emi kwi-angle ye-45 degree |
| R | indawo ethintelweyo |
Iintlobo ezidibeneyo zeespools ezenziweyo
- F yeyokuwelda kwefillet.
- U-G ngoweld yegroove.
Ukunyamezela ukwenziwa kwemibhobho spool
| Ukugoba okwenziweyo | Ubukhulu 8% umbhobho OD |
| Ukujika ubuso ukuya kwiflange ubuso okanye umbhobho ukuya kwiflange ubuso | ±1.5mm |
| Ubuso beFlange | 0.15mm / cm (ububanzi bobuso obuhlangeneyo) |
Ubuncinci bombhobho weqhekeza phakathi kweewelds
Ikhowudi kunye nomgangatho wePup / iqhekeza elifutshane lombhobho okanye iqhekeza lombhobho eliphakathi kwe welds
- Khetha ubude be-spool yombhobho ubuncinane be-intshi ezi-2 okanye amaxesha ama-4 obunzima bodonga ukugcina i-butt iweld ikude kancinane ukunqanda ukugqithelana.
- NgokoMgangatho we-Australian AS 4458 – umgama phakathi komphetho we-2 butt welds kufuneka ubuncinane ube yi-30 mm okanye amaxesha ama-4 ubukhulu bodonga lombhobho.
